Monitoring Vital Signs in Exotic Animal Species

Key Points

  • Essential physiologic parameters, such as heart rate and rhythm, respiratory rate and depth, body temperature, and mucous membrane color, should be evaluated in all patients, including exotic animal species.
  • Monitoring equipment is useful but cannot replace competent hands-on monitoring techniques.
  • Maintenance of normal body temperature is an important priority during general anesthesia. Young, growing animals, patients in poor body condition, and small species with a high body surface-to-mass ratio are all at particular risk for hypothermia.
  • During anesthesia and recovery, strive to maintain the body temperature of every reptile patient within its preferred optimum temperature zone.
  • A change in respiration is sometimes the first sign of a problem that requires intervention. Therefore, the patient’s rate, pattern, and depth of respiration should be closely monitored throughout the perianesthetic period.
  • Birds tolerate apnea much less than reptiles or mammals. If breathing stops for even 10-15 seconds in the avian patient, this is often an indication to reduce anesthetic depth and assist ventilation.
  • All reptiles require intermittent positive pressure ventilation at a surgical plane of anesthesia.
  • This article is part of a series on anesthetic monitoring in exotic animal patients. Additional topics available include:  blood pressure, capnometry, electrocardiography, and pulse oximetry.

Introduction

Even the most steadfast and seasoned veterinary anesthetist can find themselves intimidated by exotic animal patients. Monitoring anesthesia can be a nerve-wracking endeavor in and of itself, and this can be further compounded by the added intricacies of these special species. Typical canine and feline veterinary anesthesia monitors are not designed to read the extremely high (or extremely low) heart rates and respiratory rates of some exotic animals. Despite these challenges, valuable information on patient vital signs can be gathered from monitoring tools as well as hands-on techniques (Fig 1).1,23 Essential physiologic parameters, such as heart rate and rhythm, respiratory rate and depth, body temperature, and mucous membrane color should all be evaluated (Table 1).

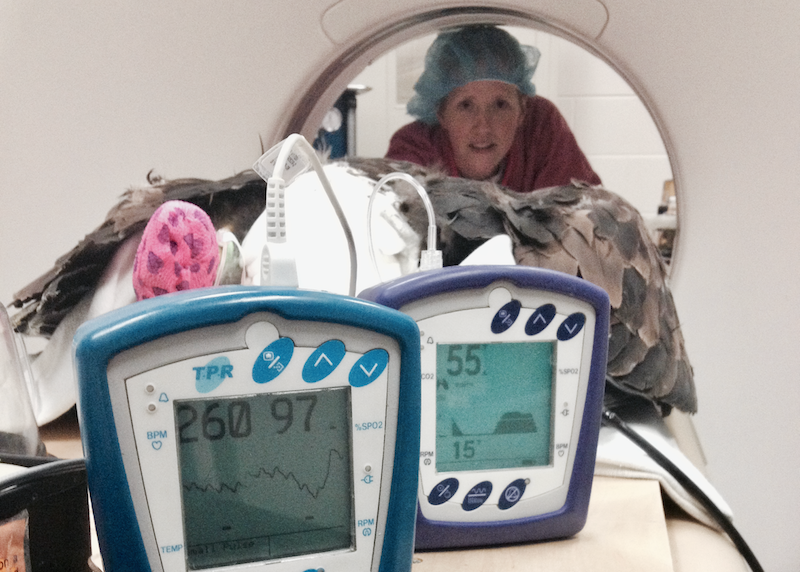

Bald eagle with a capnograph and pulse oximeter in place. A vigilant anesthetist performing hands-on monitoring of vital signs

Figure 1. A vigilant anesthetist performs hands-on monitoring of a bald eagle (Haliaeetus leucocephalus). Photo credit: Katrina Lafferty, CVT, VTS. Click image to enlarge.

Table 1. Normal physiologic values for birds and small mammals
HR RRBody temp References
Beats per minute Breaths per minute ºC (ºF)
MAMMALSChinchilla (Chinchilla laniger) 150-25040-8037-38
(98.5-100.4)
Degu
(Octodon degus)
38.3
(100.9)
Fennec fox
(Vulpes zerda)
340-60025-45
Ferret
(Mustela putorius furo)
1182338.2
(100.8)
6
Gerbil260-3009039
(102.2)
6
Guinea pig
(Cavia porcellus)
280.0 +/- 6.7 38
(100.4)
6
Hamster 3508037.4
(99.32)
6
Hedgehog, African Pygmy
(Atelerix albiventris)
180-28025-5035.39-37
(95.7-98.6)
Hedgehog, European (Erinaceus europaeus) 200-280 25-5035 +/- 2
(95)
37
Mouse
(Mus musculus)
57018037.4
(99.32)
6
500-6007
Prairie dog, black-tailed (Cynomys ludovicianus) 83-31840-6035.4-39.1
(95.7-102.3)
33
Rabbit, European (Oryctolagus cuniculus) 2205538
(100.4)
6,7
Rat
(Rattus norvegicus)
3508038
(100.4)
6,7
300-50070-15037.7
(99.9)
37
500-6007
Skunk, striped (Mephitis mephitis) 140-19025-5038.9
(102)
33
Sugar glider (Petaurus breviceps) 200-300 16-40 35.8-36.6
(96.5-97.9)
15,33
Virginia opossum (Didelphis virginiana) 90-160 12-24 35-36
(95-96.8)
15
BIRDSCaged birds39-42
(102.2-107.6)
4,6
Amazon parrot (Amazona spp.) 340-60015-4541.8
(107.1)
Canary
(Serinus spp.)
27460-8042.2
(108)
Cockatiel
(Nymphicus hollandicus)
20640-5041.8
(107.1)
Eclectus340-60025-45
Grey parrot (Psittacus erithacus) 340-60025-4541
(105.8)
Finch90-11042.2
(108)
Lovebird206-27450-6041.8
(107.1)
Macaw389 (small)20-2542
(107.7)
275 (large)
Rock dove (Columba livia)42.2
(107.96)
38
Waterfowl40-42
(104-107.6)
22
Canada goose (Branta canadensis)133 +/- 8.418.7 +/- 1.340.2 +/- 0.58

(104)
22
Canvasback (Aythya valisineria) 158 +/- 4821+/- 339.0 +/- 0.8
(102.2)
22
Pekin duck (Anas platyrhynchos domesticus) 281.3

(220-375
36
Pekin duck213 +/- 841.3 +/- 0.2

(106.3)
19
Pekin duck190 +/- 1719 +/- 422
Pekin duck7 (6-13)22
Pekin duck 218 +/- 3217 +/- 422
Pekin duck15.8 +/- 1.522
Buzzards (Buteo buteo)325.2 +/- 52.9 22
HR: Heart rate RR: Respiratory rate

Temperature

An important priority for every anesthetist is to maintain normothermia.31 A fall in body temperature, or hypothermia, is extremely common during anesthesia, but is of particular concern in young, growing animals, patients in poor body condition, and in small patients with a high body surface-to-mass ratio (Table 2).17,30

Table 2. Causes of heat loss during the pre- and perianesthetic period 10
CategoriesMethod
EvaporativeClipping or plucking
Surgical preparation
Introduction of cold anesthetic gases
ConductivePlacement on cold surgical tables
ConvectiveOpen body cavities
Cold irrigation solutions
RadiantOpen body cavities
Cold irrigation solutions
Exposed patient surface area

Hypothermia can adversely affect the central nervous system, as well as the cardiopulmonary, gastrointestinal, and metabolic systems, resulting in a host of physiologic effects, including acidosis, bradypnea, decreased minute ventilation and tidal volume, bradycardia, cardiac instability, and arrhythmia.10,17,32 The minimum alveolar concentration (MAC) decreases as body temperature falls, and hypothermia also adversely affects the speed and quality of recovery.2 Hypothermia can also directly influence surgical site healing.33 Severe and prolonged hypothermia can even have potentially fatal consequences.3,6,24

Body temperature is one of the simplest vital signs to monitor during anesthesia.6 A rectal thermometer can be used; however, this measurement often underestimates core temperature and the readings from a standard thermometer may not go low enough for some reptile patients.6 If a thermometer is used, monitor body temperature every 5 minutes.17 Preferably core body temperature should be measured using an esophageal or rectal/cloacal temperature probe with continuous display (Fig 2).2,6,9,24,31 If an esophageal temperature probe is used, gently advance the probe into the thoracic esophagus to avoid the cooling effects of respiratory gases. The probe should not be advanced past the level of the thoracic inlet as it could enter the stomach or crop and receive false readings from gastric contents or feed material.6

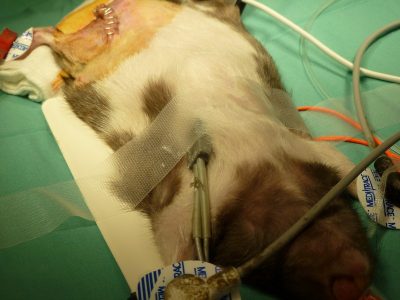

Vital signs temperature monitoring in a hypothermic rat

Figure 2. Rectal temperature probe placed in an anesthetized rat (Rattus norvegicus). Photo credit: Katrina Lafferty, CVT, VTS. Click image to enlarge.

Correction of hypothermia is challenging and every effort should be made to maintain normothermia or minimize hypothermia in the exotic animal patient (Table 3).10,22

Table 3. Forms of thermal support during anesthesia (Skorupski et al 2017)

  • Increase ambient temperature of prep and surgical areas

  • Follow surgical prep with sterile saline instead of alcohol

  • Provide clear plastic drapes for additional insulation

  • Minimize surgical time and surgical preparation time

  • Warm flushing solutions

  • Appropriate use of thermal support such as circulating hot water blankets, convective forced air warming devices, warm water bottles (wrapped in towels to minimize burns), and even bubble wrap

  • Use radiant heat lamps with EXTREME caution only

EXOTIC COMPANION MAMMALS

Body temperature can quickly plummet below 35ºC (95ºF) when small mammals are not provided with supplemental heat.23,27 Flecknell (2015) has described reductions in body temperature up to 10ºC in anesthetized mice in as little as 15-20 minutes. Since tiny patients can sometimes heat up just as quickly as they cool down, it is also important to carefully monitor temperature during recovery to prevent hyperthermia and/or burns.17

Marsupials normally have a lower body temperature than eutherian mammals (Table 1). To effectively measure temperature, insert the thermometer into the dorsal part of the cloaca, which communicates with the rectum.15

BIRDS

Birds, particularly smaller species, have higher metabolic rates and higher body temperatures when compared to mammals of similar size. Normal body temperature ranges between 39-42ºC (102.2-107.6ºF) in many avian species.4,6,17,18,22,32 This high body temperature creates a steep temperature gradient between the bird’s core temperature and the temperature of the environment, which can to lead to rapid and dramatic heat loss when a bird is placed under general anesthesia.6,17

The superior insulation provided by plumage in waterfowl and other aquatic birds can cause significant hyperthermia, particularly if the bird struggles during induction or must be captured under field conditions.12,22 Additionally, some aquatic birds can shunt blood from their periphery to preserve core body temperature, making cloacal temperatures inaccurate.12

REPTILES

Reptiles are poikilotherms. General metabolism and cardiovascular physiology, which affects drug clearance, oxygen demand, acid base status, as well as induction time and recovery, are highly temperature dependent.2,8,17,23,31 Hypothermia leads to a progressive decrease in cardiac output and an increase in cardiac shunting.8 This ability to selectively shunt blood flow away from pulmonary circulation is likely the cause of prolonged recovery from inhalant anesthesia in the reptile patient.31 In anesthetized garter snakes (Thamnophis sirtalis parietalis), recovery time at 21ºC (69.8ºF) was twice as long as at 31ºC (87.8ºF).2,25

Maintain body temperature within the preferred optimum temperature zone (POTZ) for your species of interest during anesthesia and recovery.2,21 Although POTZ is species specific, 25-35ºC (77-95ºF) will be appropriate for most temperate and tropical squamates during induction, anesthesia, and recovery.2 Many freshwater turtles will tolerate temperatures between 20-25ºC (68-77ºF), while sea turtles and land tortoises are better adapted to temperatures between 25-30ºC (77-86ºF).20,31 Monitor reptiles carefully during recovery to prevent overheating and/or burns.17,31 Thermal burns can occur more easily in reptiles that are dehydrated with poor peripheral perfusion.2 Although low ambient temperatures will slow or halt reptile activity, hypothermia should never be considered part of the anesthesia or sedation protocol.

Heart rate

Changes in this vital sign can be a sensitive clue to the physiologic status of the patient (Table 4).9 There is no clinical consensus over when bradycardia or tachycardia should be treated, but conservative guidelines for intervention are approximately 20% below or 20% above normal.9 Both bradycardia and tachycardia should always be addressed when associated with evidence of poor cardiac output, reduced blood pressure, or inadequate tissue perfusion.

Table 4. Potential causes of bradycardia and tachycardia 9
Bradycardia Tachycardia
  • Anesthetic agents
  • Increased vagal tone
  • Drugs: mµ opioid agents, beta blocking agents
  • Metabolic:  hypothermia, end-stage hypoxemia, hyperkalemia
  • Heart disease (sick sinus syndrome, AV conduction disturbance)
  • Sepsis
  • Shock
  • Dive response
  • Light level of anesthesia:  arousal to sensory input, pain response
  • Drugs:  ketamine, parasympatholytics, sympathomimetics
  • Metabolic:  hypovolemia, hypoxemia, hypercapnia, hyperthermia
  • Post-operative pain
  • Heart disease (supraventricular tachycardia, ventricular tachycardia)
  • Disease (pheochromocytoma, hyperthyroidism in small animals)

Heart rate and rhythm can be monitored by an infant or pediatric stethoscope, an esophageal stethoscope, electrocardiogram (ECG), or a Doppler ultrasonic flow probe. The peripheral pulse rate can be palpated in birds and mammals, and an apex beat or pulse can sometimes be visualized in the reptile patient.

EXOTIC COMPANION MAMMALS

Assess the rate, rhythm, and quality of the peripheral pulse in larger species like the rabbit (Oryctolagus cuniculus). The femoral artery is most easily palpated.6 The peripheral pulse rate can also be palpated at the dorsal pedal artery, axillary artery, auricular artery, and the caudal (tail) artery. Heart rate can also be palpated directly over the thoracic cavity. Similarly, the transducer of the Doppler monitor can be placed directly over the heart or a superficial artery, like the carotid, carpal, or femoral artery, to generate real-time, continuous monitoring of heart rate.23 Use of the Doppler probe is particularly useful in tiny patients since changes can occur rapidly (Fig 3).20,31 An esophageal stethoscope can be used to monitor heart rate in larger animals, like the rabbit and ferret (Mustela putorius furo), but can induce regurgitation in guinea pigs (Cavia porcellus).14

Vital signs Doppler crystal placed over the thoracic cavity in a rat

Figure 3. A Doppler ultrasound probe placed directly over the thoracic cavity of a rat (Rattus norvegicus). Photo credit: Katrina Lafferty, CVT, VTS. Click image to enlarge.

BIRDS

Peripheral pulses can be found at the brachial (median or superficial ulnar), medial metatarsal, or carotid artery in the bird.10 The cutaneous ulnar or brachial artery is a popular site when the Doppler ultrasound probe is used to monitor heart rate (Fig 4, Fig 5).13 A Doppler flow probe can also be placed against the palatine artery in select species (Fig 6). The complex crop of psittacine birds and pigeons can make it difficult to pass an esophageal stethoscope into the thoracic esophagus in these species.12

Doppler placement on the brachial artery in a Pekin duck

Figure 4. Doppler ultrasound probe placement on the brachial artery of a Pekin duck (Anas platyrhynchos domesticus). Maintaining correct position of the probe in this awkward location can be challenging. Photo credit: Katrina Lafferty, CVT, VTS. Click image to enlarge.

Doppler held in place with probe holder (arrow) in a Pekin duck

Figure 5. Two tongue depressors can be taped together at one end to form a giant clothespin to hold the Doppler probe in place over the brachial artery. Photo credit: Katrina Lafferty, CVT, VTS. Click image to enlarge.

oppler crystal placed over the palatine artery in a bald eagle

Figure 6. Doppler ultrasound transducer placed over the palatine artery in the dorsal palate of a bald eagle (Haliaeetus leucocephalus). Photo credit: Katrina Lafferty, CVT, VTS. Click image to enlarge.

REPTILES

The apex beat can usually be visualized along the ventral scales in snakes, approximately 25% along the snake’s length (Video 1). In many lizards, the pulse can be observed in the jugular groove.2 Doppler is considered the most reliable device for monitoring cardiac blood flow in reptiles.20,31 The Doppler probe can be placed directly over the heart (Video 2, Fig 8, Fig 9), or it can be taped over a superficial artery like the carotid artery (on the ventrolateral surface of the neck), the coccygeal artery (at the base of the tail), or the femoral artery. The reptile heart rate is highly influenced by temperature.5,31

Video 1. The wave associated with a beating heart is visible in this snake. Video credit: Katrina Lafferty, CVT, VTS.

Video 2. Doppler ultrasound probe placed over the heart of a snake. Heartbeat can be heard in the background. Note:  Please enable audio to hear the heartbeat in the background. Video credit: Katrina Lafferty, CVT, VTS.

Vital signs Doppler crystal placed over the heart in a snake

Figure 7. Doppler ultrasound probe placed directly over the heart of a snake. Photo credit: Katrina Lafferty, CVT, VTS. Click image to enlarge.

Doppler crystal placed underneath the thoracic cavity of a Uromastyx in sternal recumbency

Figure 8. The position of the heart varies among lizard species. The heart is located very close to the pectoral girdle in iguanids and agamids. In chameleons and varanid monitors (as shown here), the heart is located in a more caudal location. Photo credit: Katrina Lafferty, CVT, VTS. Click image to enlarge.

Respiration

It is important to closely monitor the rate, pattern, and depth of respiration throughout the perianesthetic period.6 First, record the patient’s respiratory rate before the anesthetic event. Ideally the animal should be calm and relaxed, however many birds and small mammals will display a rapid respiratory rate in a clinical setting.6 During anesthesia, observe the frequency and range of sternal motion as well as movement of the reservoir bag. Substitute balloons for reservoir bags for easier scrutiny of bag movement in patients with small tidal volumes.6 Respiration can also be monitored by placing a sensor near the nostrils or mounted on the anesthetic breathing system close to the endotracheal tube or face mask connector. Some monitors utilize a pressor sensor, which can be triggered by chest wall movements.

A special concern in tiny patients is obstruction of the endotracheal tube. This can occur as a result of bending or kinking or through blockage of the tube with respiratory secretions. Tube blockage is often indicated by a sudden change in respiratory pattern with prominent whistling, wheezing, or harsh breath sounds produced. Expiration may appear difficult, slow, or nonexistent and the reservoir bag may no longer reflect movement. An end-tidal carbon dioxide monitor may show apnea or a change in waveform.18 When blockage is suspected, quickly evaluate the endotracheal tube for a kink and correct. If the situation is not immediately improved or blockage is suspected, promptly remove the tube and replace as needed.18

Although monitoring respiration has value, this vital sign does not adequately assess ventilation.23 An end-tidal carbon dioxide monitor will provide valuable information in most intubated patients.6

MAMMALS

A change in respiration can be the first sign of a problem that requires intervention. When apnea develops, there can be a 1-2-minute delay before blood oxygen levels fall or carbon dioxide (CO2) levels rise in mammals.6

BIRDS

Birds are much less tolerant of apnea when compared to mammals and reptiles. If breathing stops for even 10-15 seconds this is often an indication to reduce anesthetic depth and assist ventilation.19

REPTILES

Most normal reptiles exhibit an intermittent breathing pattern characterized by exhalation and inspiration, followed by an apneic period of variable length.2 All reptiles require intermittent positive pressure ventilation at a surgical plane of anesthesia. Standard guidelines recommend four to six breaths per minute; however this may need to be adjusted for each individual patient.26 Based on blood gas analysis, five breaths per minute led to respiratory alkalosis in anesthetized rattlesnakes (Crotalus durissus) and one to two breaths per minute was deemed appropriate for this species.26

A drop in arterial oxygen saturation stimulates the respiratory drive in most reptiles. This is the opposite to mammals, which respond to an increase in arterial carbon dioxide levels. 29 To stimulate spontaneous ventilation in the reptile patient during recovery, low oxygen flow rates are maintained with the use of room air and a bag valve mask (i.e. Ambu bag).



Summary

Heart rate and rhythm, respiratory rate, and body temperature, should ideally be monitored during every anesthetic procedure. These vital signs can be gathered using hands-on techniques as well as monitoring tools. A change in respiration is sometimes the first sign of a problem that requires intervention. Birds tolerate apnea to a far less degree than reptiles or mammals. If breathing stops for 10-15 seconds or more in the avian patient, this is often an indication to reduce anesthetic depth and assist ventilation. All reptiles require intermittent positive pressure ventilation at a surgical plane of anesthesia. Changes in heart rate can be a sensitive clue to the physiologic status of the patient, and it is also crucial to carefully monitor body temperature and prevent hypothermia. General metabolism and cardiovascular physiology is highly dependent on environmental temperature in the reptile patient, which should be maintained within its preferred optimum temperature zone. In all species, hypothermia can result in a host of adverse physiologic effects. Severe and prolonged hypothermia can even have potentially fatal consequences.
